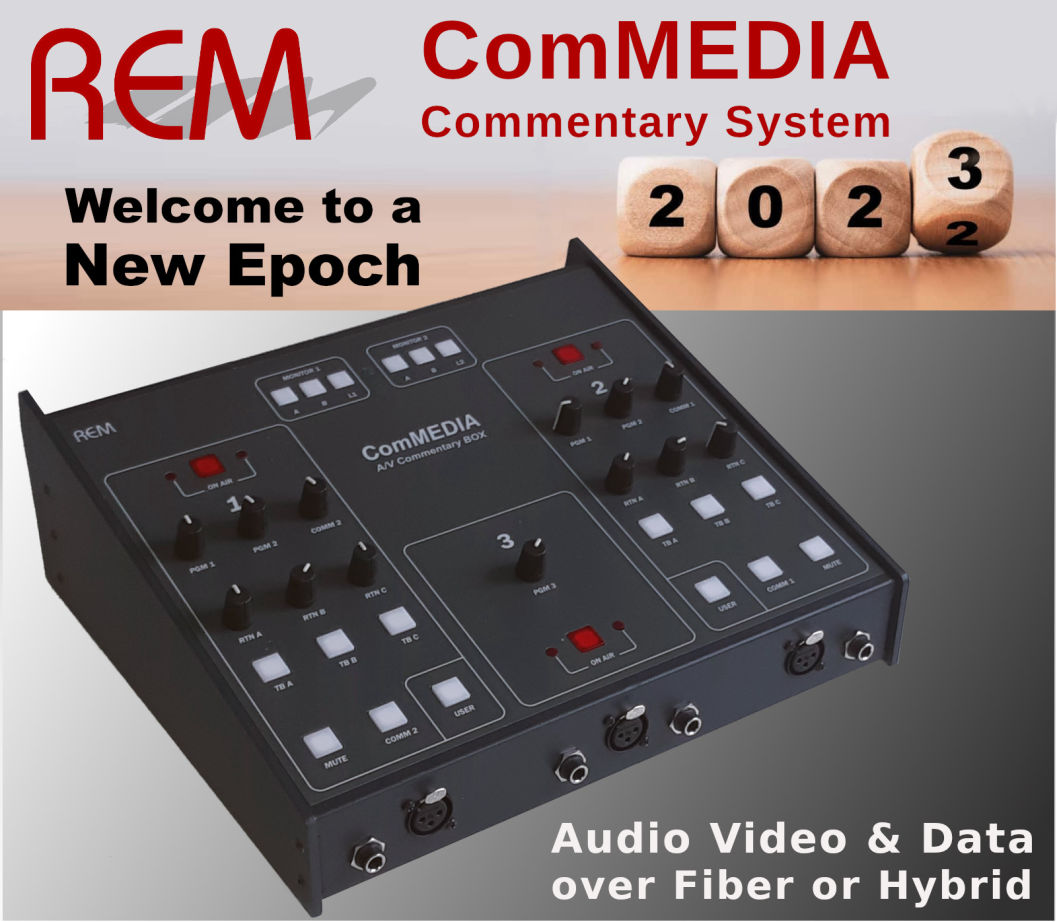

ComMEDIA Commentary System

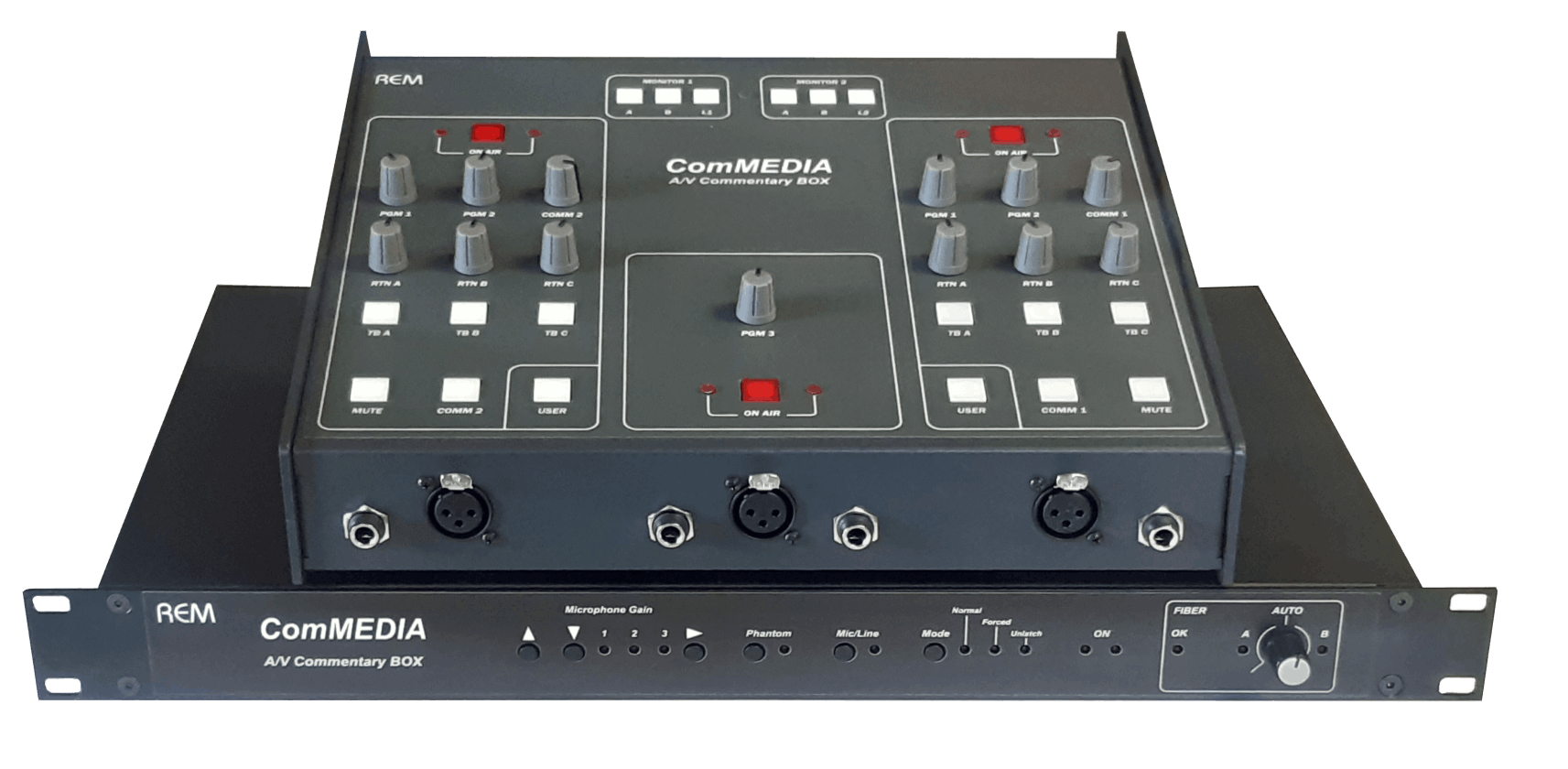

ComMEDIA  Fiber Full Featured Commentary Workstation

Connected to your control room or OB-Van via Fiber-Pair or Hybrid SMPTE
All you need in one cable:
Full featured Commentary Station with Tie-Lines and Utilities
2 x SDI-3G to supply videos to commentator with selection in Console
2 x SDI-3G to OB-Van to send Cameras, PTZ, Graphisc with Key, ...
Serial Port to control PTZ or other devices
1GB Ethernet (LAN) generic purpose DANTE, PC Net, PTZ, ..
FlexyBUS. Tally, GPI, Aux Headset, BlueTooth, ...

Just one HYBRID CABLE  or  FIBER - PAIR

Two or Three Commentators
Check all features

Brochure
REM ComMEDIA

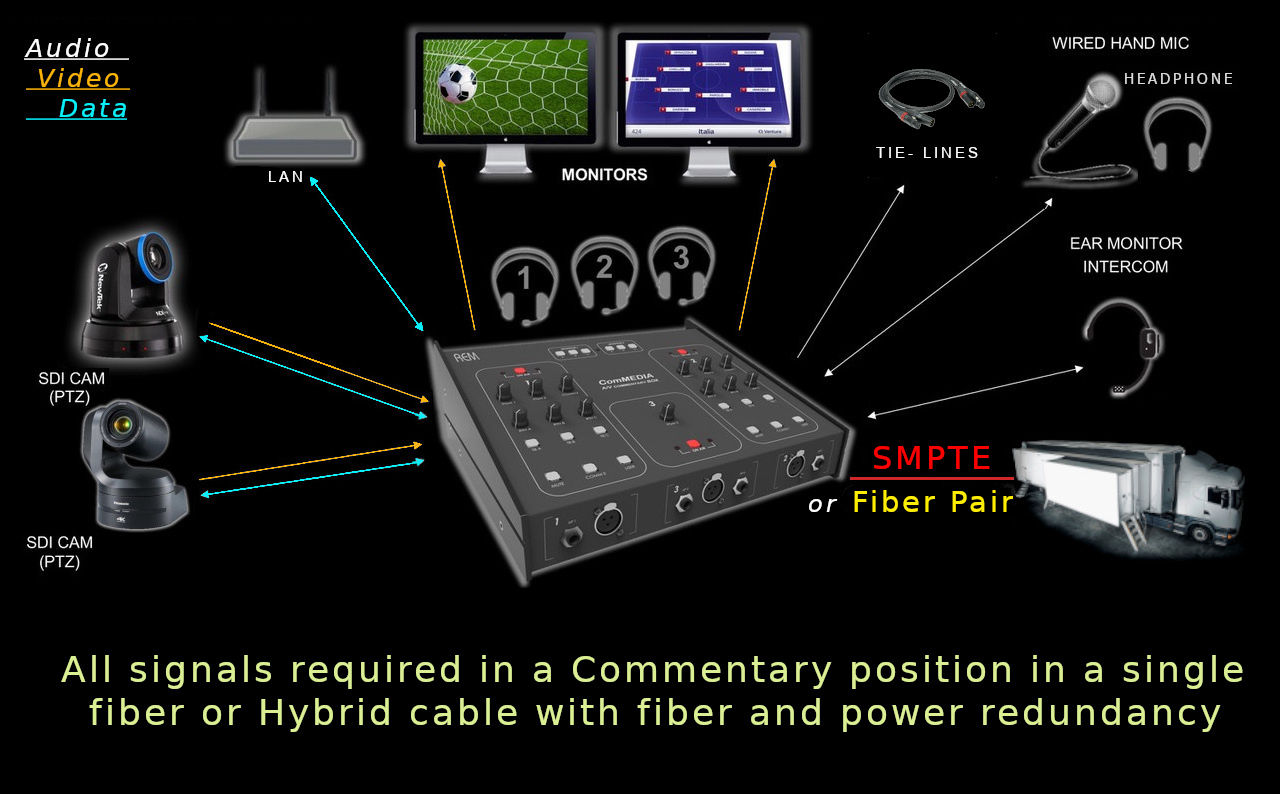

 ALL YOU NEED ...on a Fiber

- 2 SDI-3G Video from DCU to Console.    Monitor Output selectable by Commentator
- 2 SDI-3G Video from Console to DCU.    For Cameras or Video+Key (E.G.: Graphic)
- 3 or 2 Full featured Commentators plus hosts Mic or Headset
- 4 Audio TIE LINE with Microphone/Line Inputs (selectable) and EAR Monitors
- Auxiliary Wired or Bluetooth Intercom
- FlexyBUS (1GB Ethernet default) or MADI - 10GB Ethernet - SDI Bi-Directional - ...
- Automatic Fiber Switch Option (in case of active Fiber failure)
- Flexible Console Power Supply (Powercon Main / Hybrid Cable / Redundant Brick PS)
- 4 Tally / GPIs / Serial Port / Fiber Expansion ... and MUCH MORE
- Browser Page Remote Control and Config
- Fiber Switch - Fiber Redundancy (auto-switch in case of active fiber fail)

REM ComMEDIA
Console - Commentators Controls

COMMENTATOR 1 and 2
Audio
Six Audio from DCU with volume control
  - One can be set to Private Talk between Commentators
Six Buttons plus On Air
  - Three Talk-Backs to DCU
  - Mute, Private Talk and a User programmable
Video
  - Independent Video selection of Videos from DCU plus Locals
COMMENTATOR 3
  - One Audio from DCU with volume control
  - On Air Button
  - Two programmable Buttons (E.G.: Mute and Talk Back)

ComMEDIA Lite 2020

Double Commentary Audio-Video
via Fiber Pair or Hybrid (SMPTE)

Full featured with integrated Video In/Out
Two commentators plus two hosts
8 Audio Lines and Utilities
Two BiDirectional Video (3G SDI + HDMI) Tally/GPIs, RS422
Ethernet and FlexyBUS
Bluetooth Headset utility
Redundant Fiber Switch ( automatic fiber swap if a fiber fail )

POWER in Hybrid version

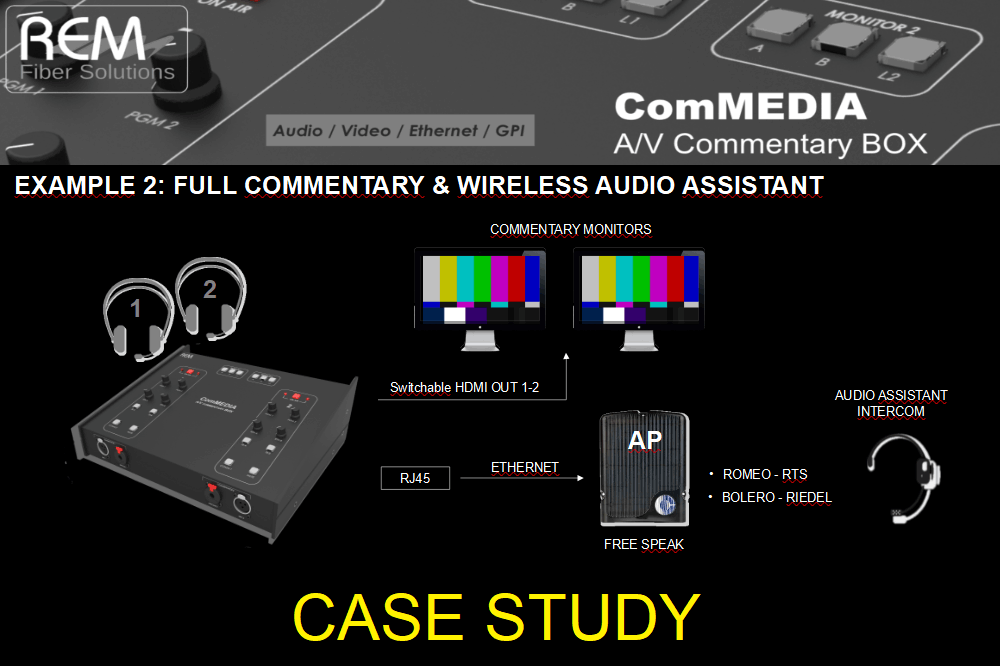

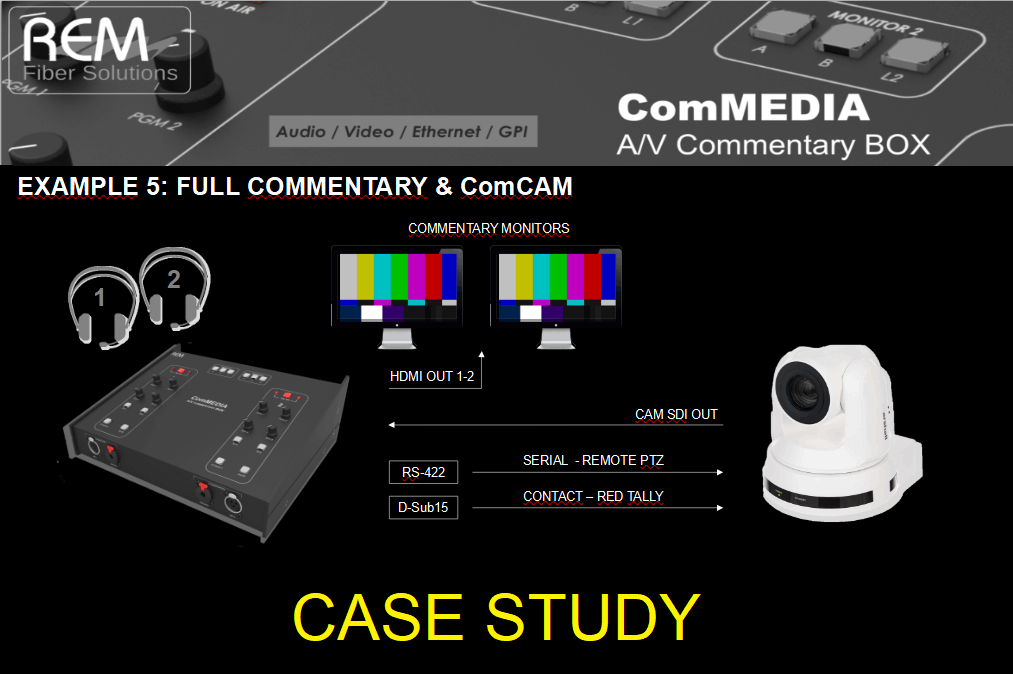

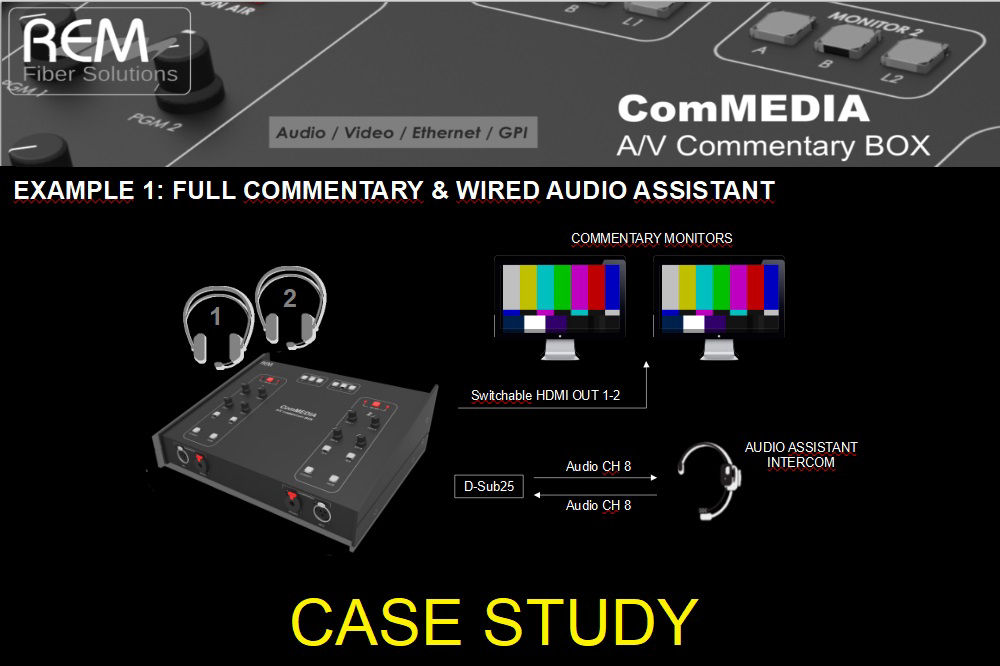

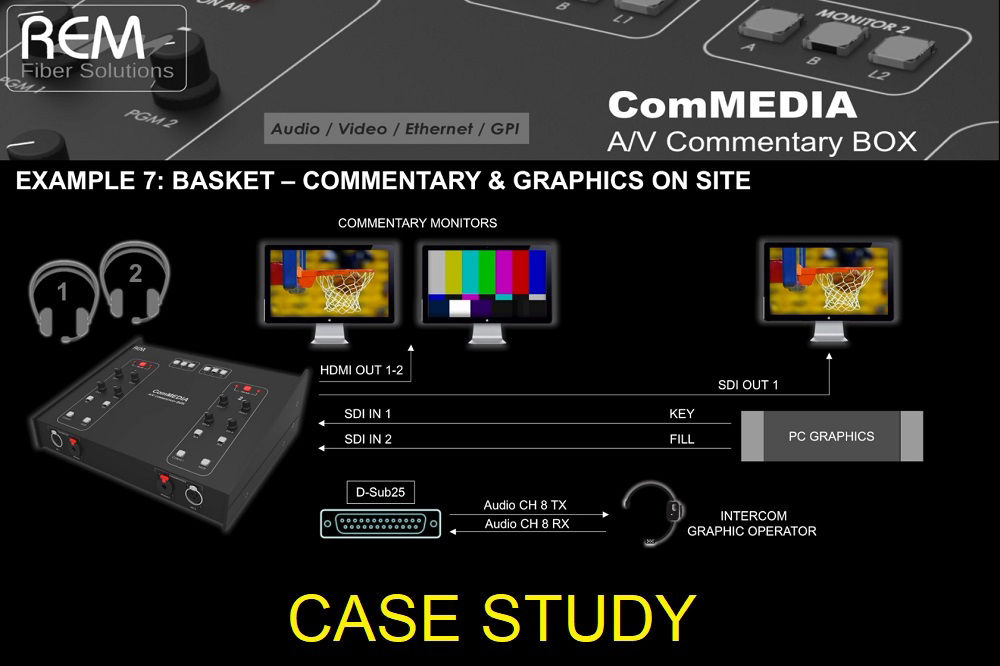

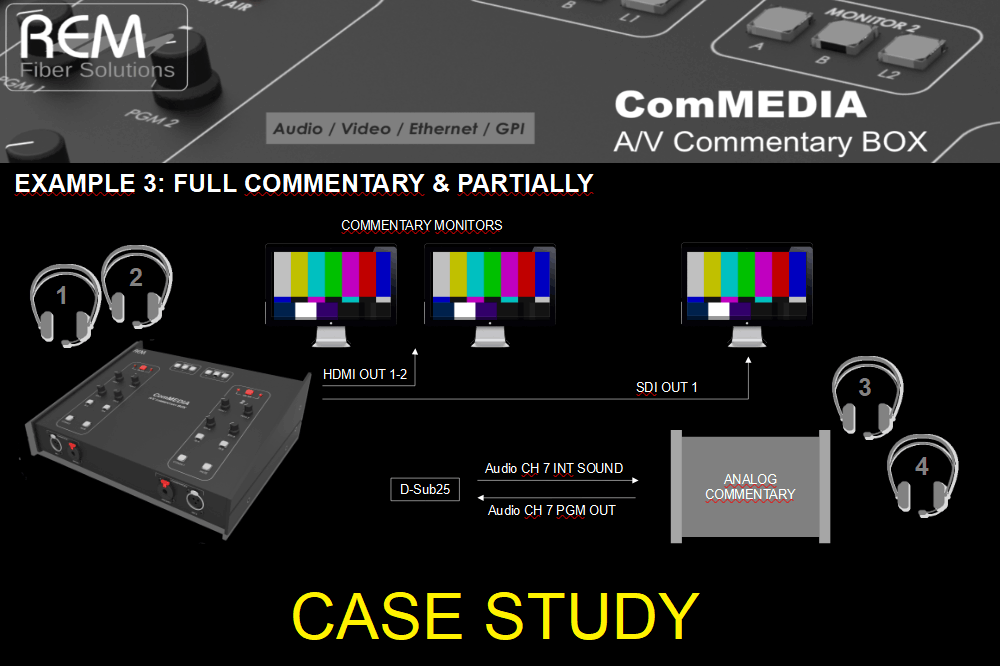

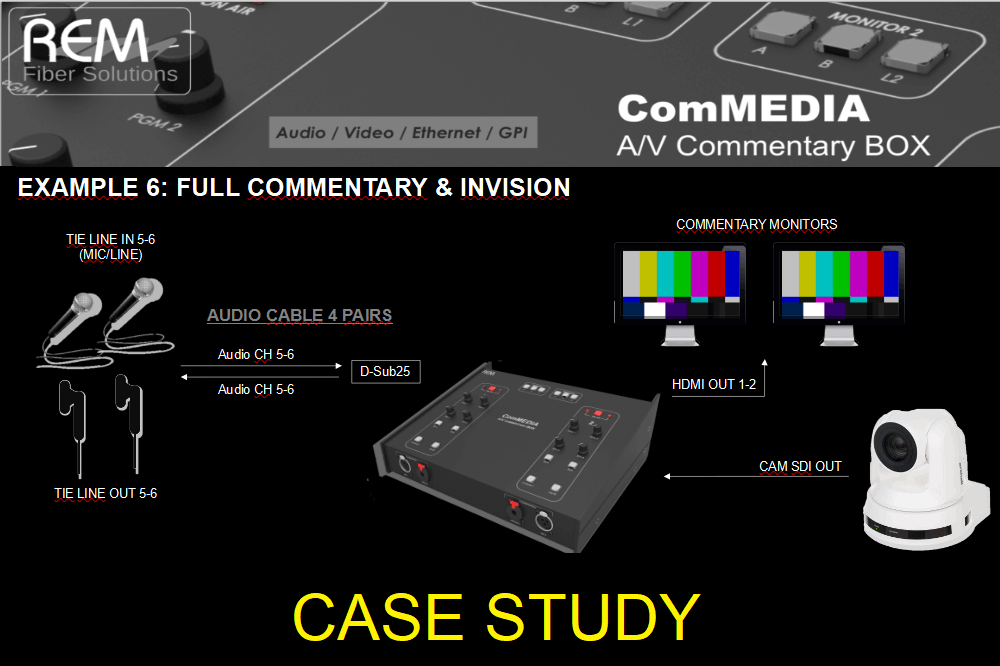

Application Examples Two Commentators
